VTX Transmitters
FPV Video
Transmitters
1.2GHz to 7.2GHz FPV transmitters from 800mW to 15W. Multi-band, long-range, IRC Tramp Smart Audio. Factory-direct with OEM/ODM from MOQ 20 units.
VTX Transmitters
19 Models
→

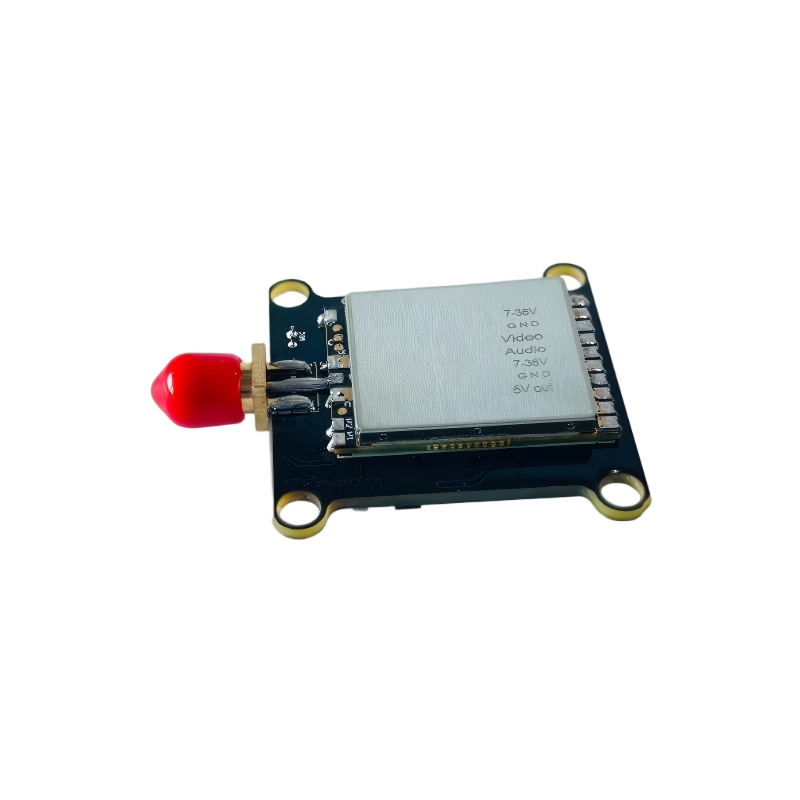

VTX · 01
1.2GHz / 800mW
SKU: VTX1G2-800
Frequency1060–1380MHz
Channels9CH
Max Power800mW
Power LevelsPIT/25/200/800mW
Input Voltage7–36V
→

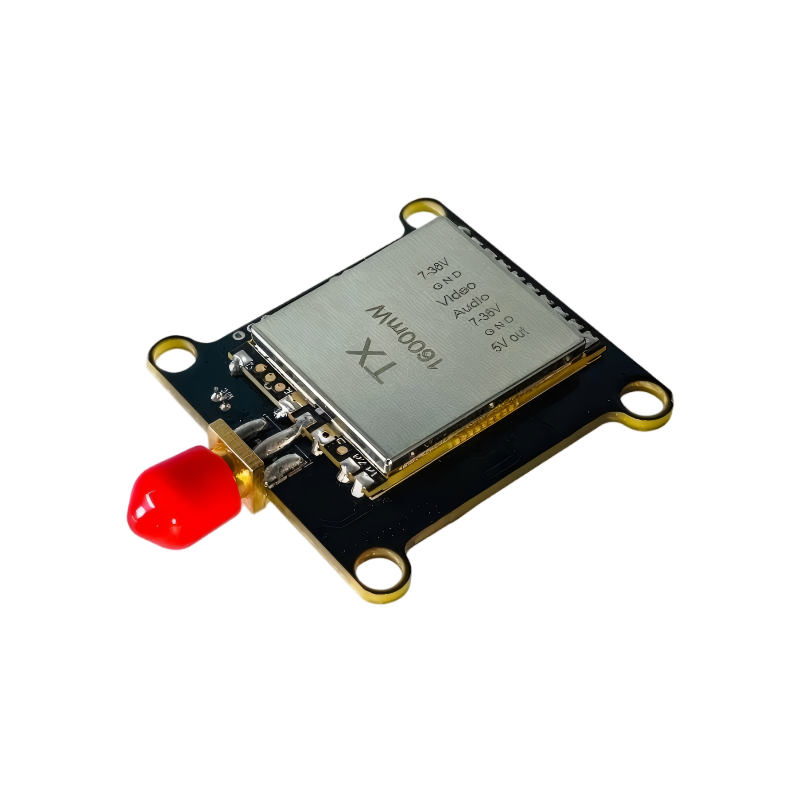

VTX · 02
1.2GHz / 1.6W
SKU: VTX1G2-1600
Frequency1060–1380MHz
Channels9CH
Max Power1600mW
Power LevelsPIT/25/200/1600mW
Input Voltage7–36V
→

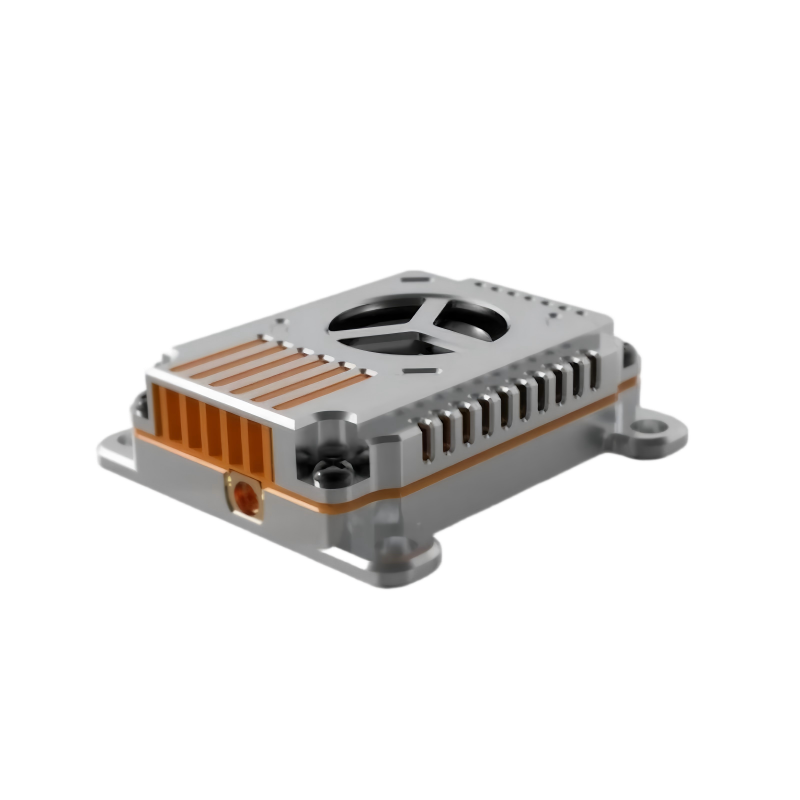

VTX · 03
1.2GHz / 2W
SKU: VTX1G2-2000
Frequency1060–1380MHz
Channels9CH
Max Power2000mW
Power LevelsPIT/25/2000mW
Input Voltage7–36V
→

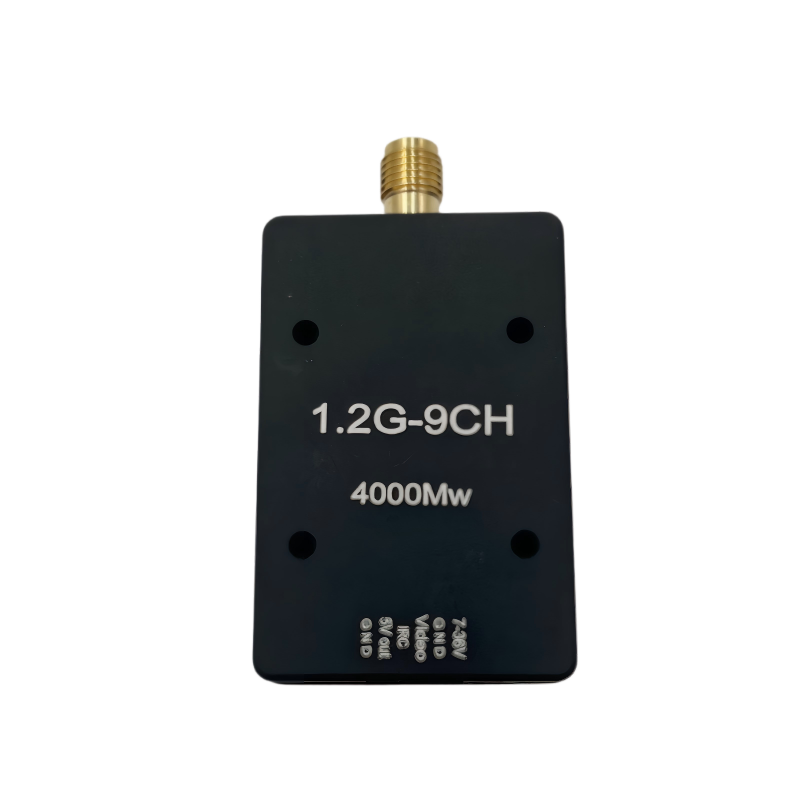

VTX · 04
1.2GHz / 4W
SKU: VTX1G2-4000
Frequency1080–1360MHz
Channels9CH
Max Power4000mW
Power Levels25mW / 2W / 4W
Input Voltage7–36V
→

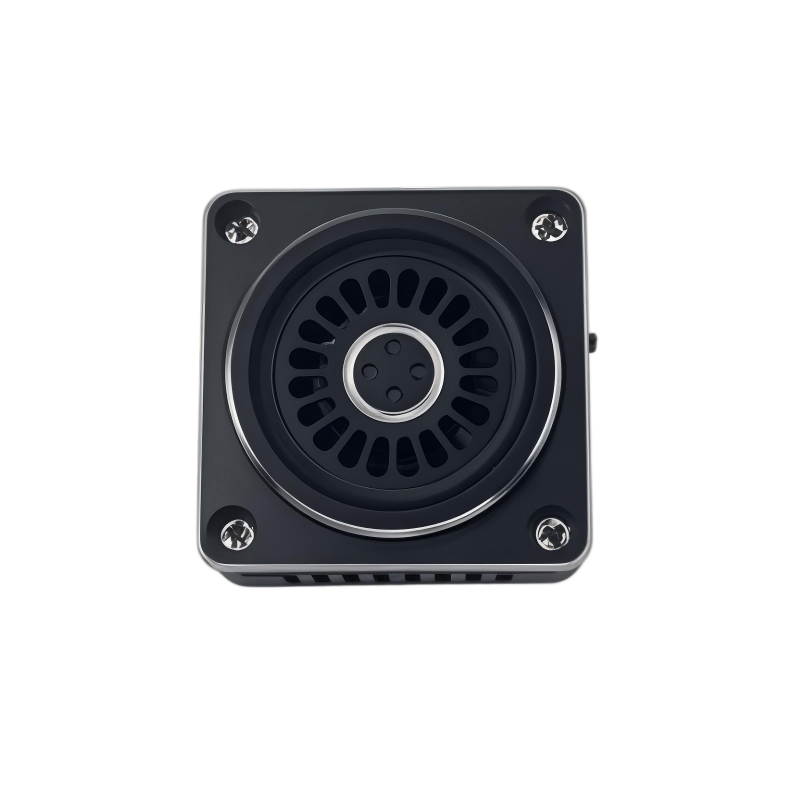

VTX · 05
1.2GHz / 5W
SKU: VTX1G2-5000
Frequency1080–1360MHz
Channels9CH
Max Power5000mW
Power Levels25mW / 5W
Input Voltage7–36V
→

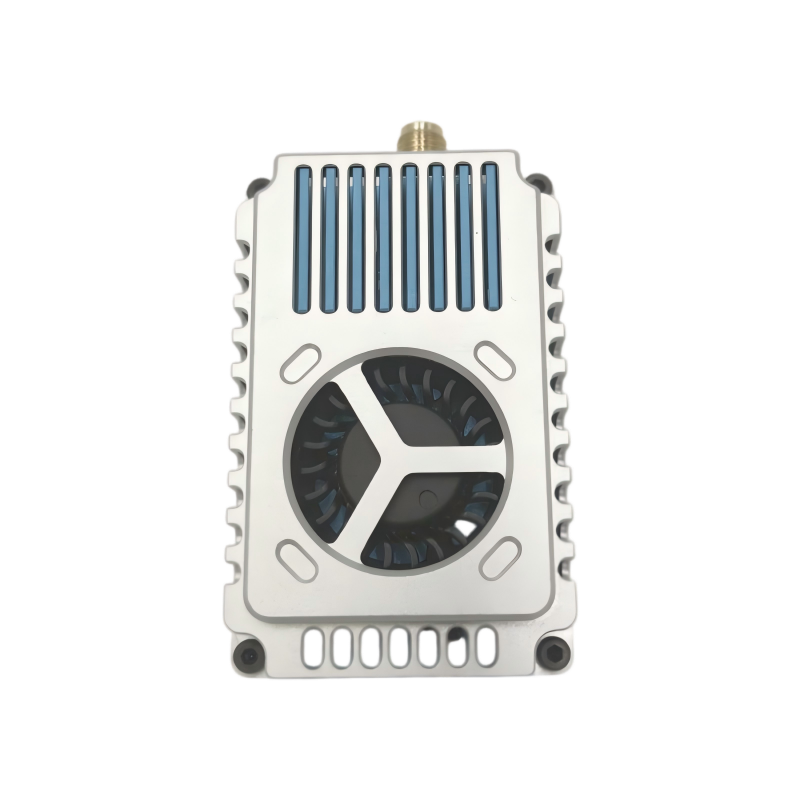

VTX · 06
1.2GHz / 10W
SKU: VTX1G2-10000
Frequency1080–1360MHz
Channels9CH
Max Power10000mW
Power Levels1/2/5/7.5/10W
Smart AudioIRC Tramp
→
VTX · 07
1.7GHz / 4W
SKU: VTX1G7-4000
Frequency1680–1960MHz
Channels8CH
Max Power4000mW
Power Levels25mW / 2W / 4W
Input Voltage7–36V
→

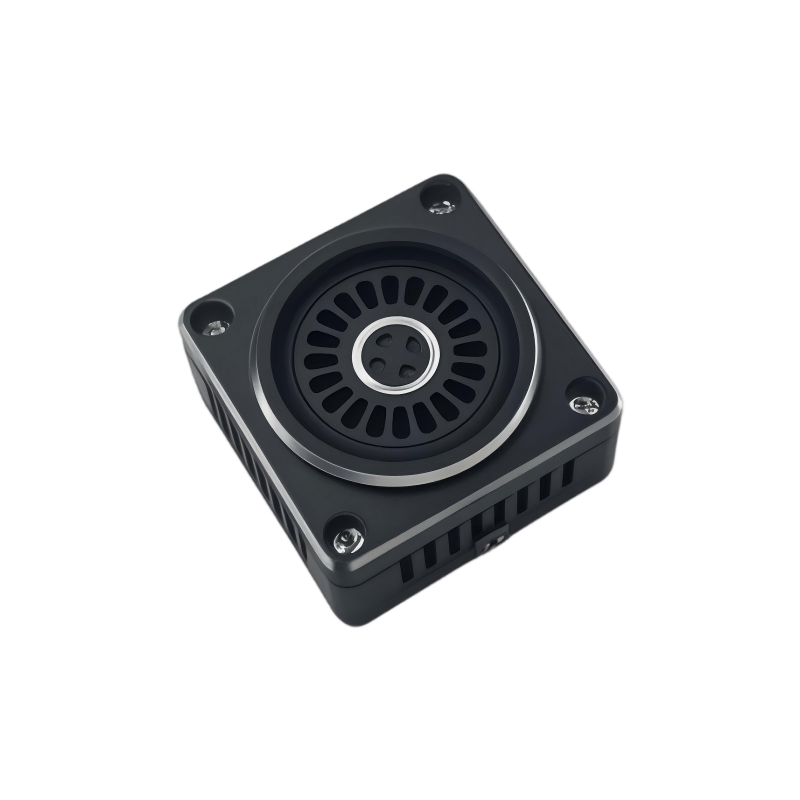

VTX · 08
1.7GHz / 5W
SKU: VTX1G7-5000
Frequency1680–1960MHz
Channels9CH
Max Power5000mW
Power Levels25mW / 5W
Input Voltage7–36V
→

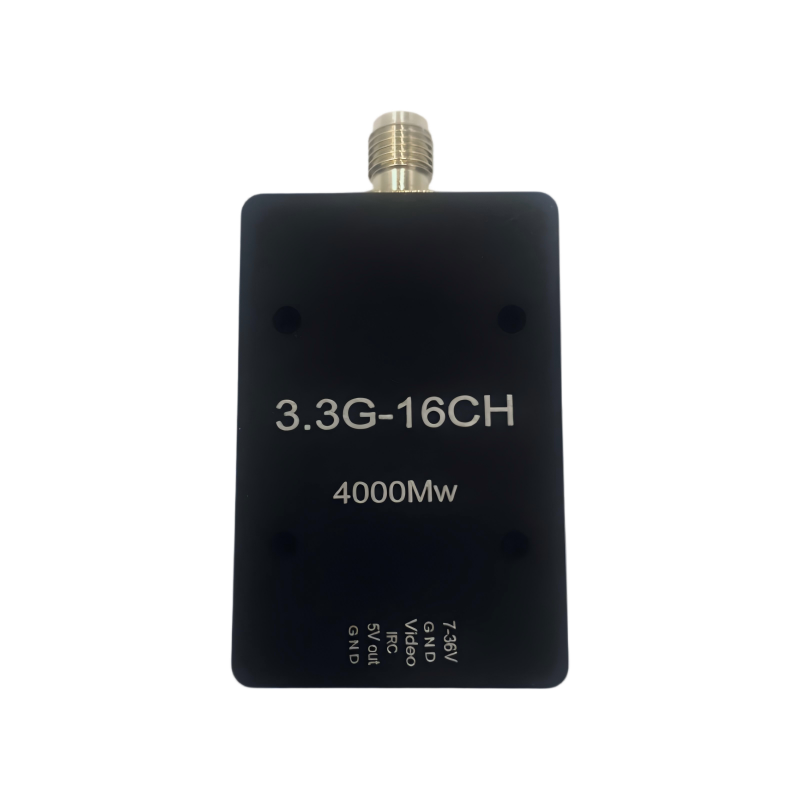

VTX · 09
3.3GHz / 4W
SKU: VTX3G3-4000
Frequency3170–3470MHz
Channels16CH
Max Power4000mW
Power Levels25mW / 2W / 4W
Input Voltage7–36V
→

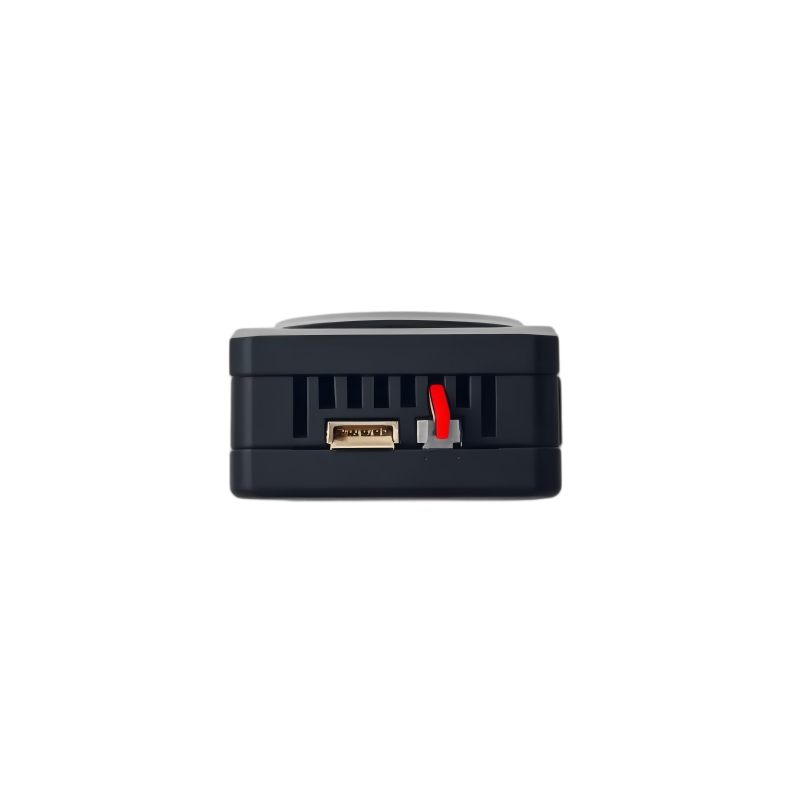

VTX · 10
3.3GHz / 5W
SKU: VTX3G3-5000
Frequency3170–3470MHz
Channels16CH
Max Power5000mW
Power Levels25mW / 5W
Input Voltage7–36V
→

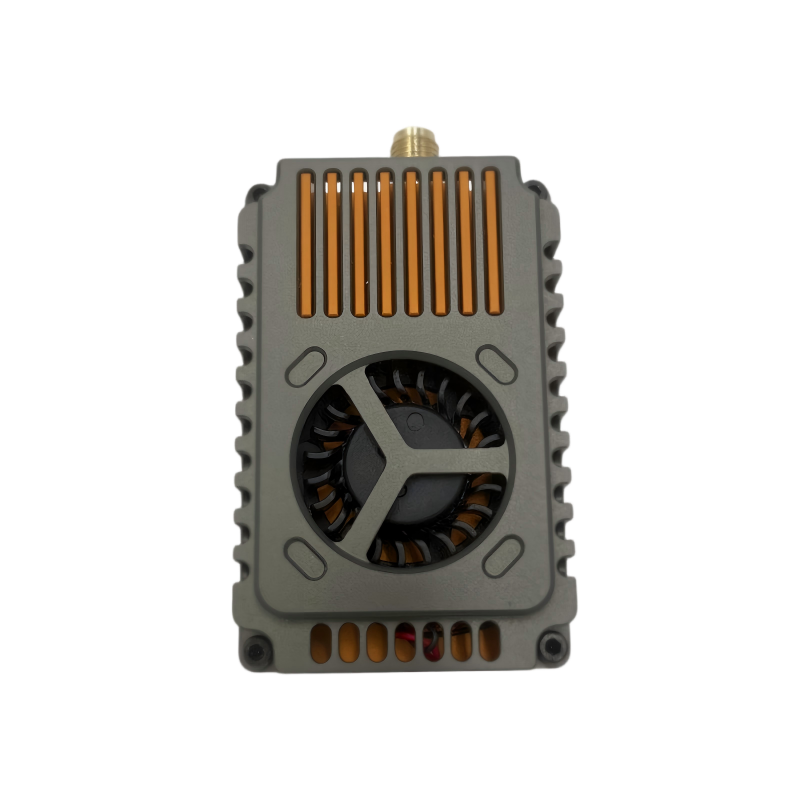

VTX · 11
3.3GHz / 10W
SKU: VTX3G3-10000
Frequency3170–3470MHz
Channels16CH
Max Power10000mW
Power Levels1/2/5/7.5/10W
Smart AudioIRC Tramp
→

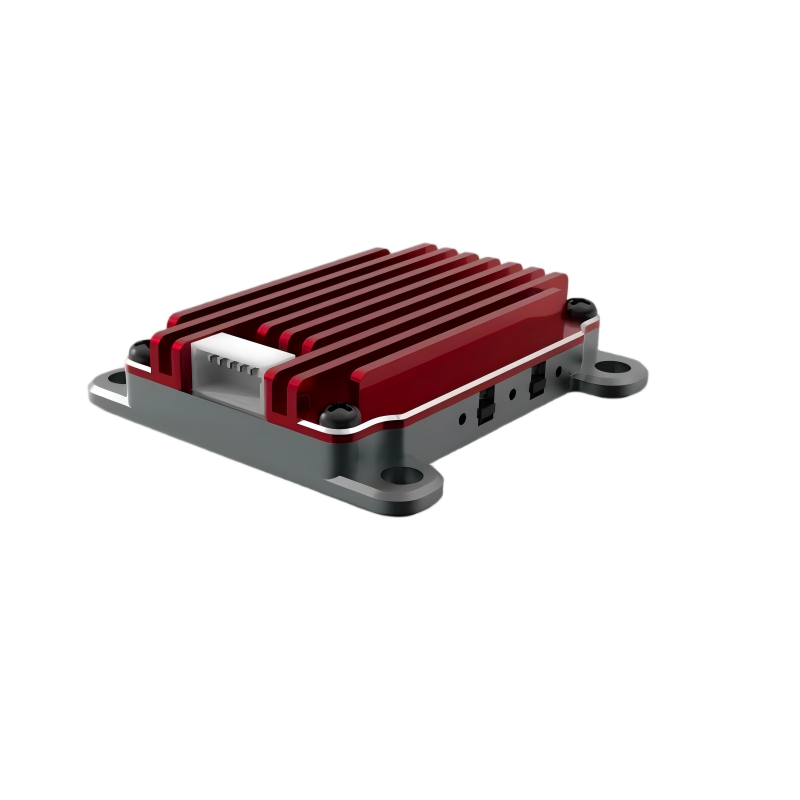

VTX · 12
5.8GHz / 1.6W
SKU: VTX5G8-1600N
Frequency5362–5945MHz
Channels48CH
Max Power1600mW
Power LevelsPIT/25/400/800/1600mW
Weight15.8g
→

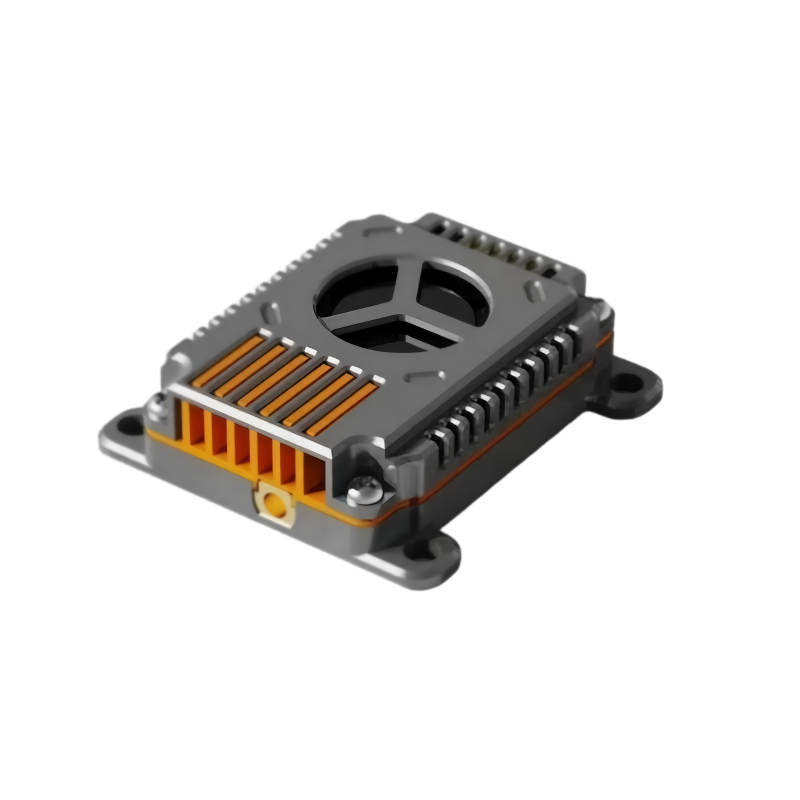

VTX · 13
5.8GHz / 3W
SKU: VTX5G8-3000
Frequency5362–5945MHz
Channels48CH
Max Power3000mW
Power LevelsPIT/25/1000/2000/3000mW
Weight16g
→

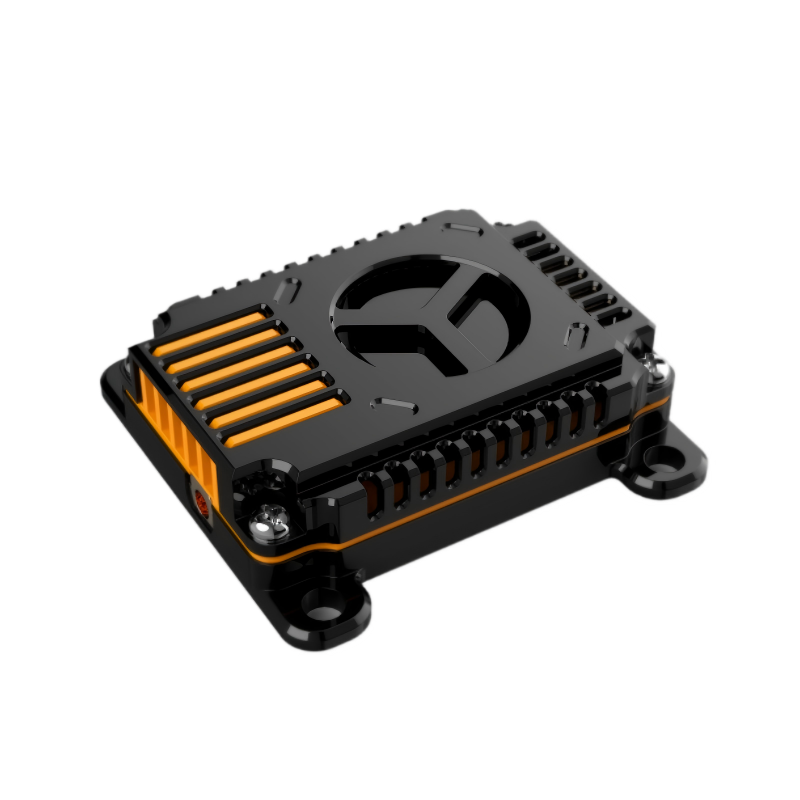

VTX · 14
5.8GHz / 4W
SKU: VTX5G4-4000
Frequency4990–5945MHz
Channels80CH
Max Power4000mW
Power Levels25mW / 2W / 4W
Input Voltage7–36V
→

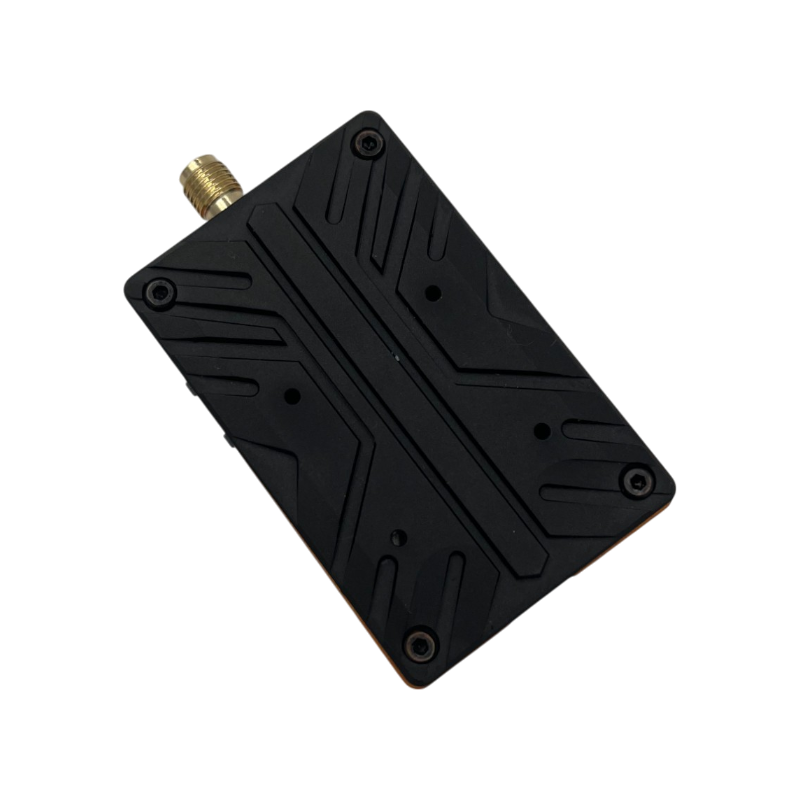

VTX · 15
4.9–6GHz / 7W
SKU: VTX4G9-6G-7000
Frequency4990–5945MHz
Channels80CH
Max Power7000mW
Power Levels1/2/5/7W
Smart AudioIRC Tramp
→

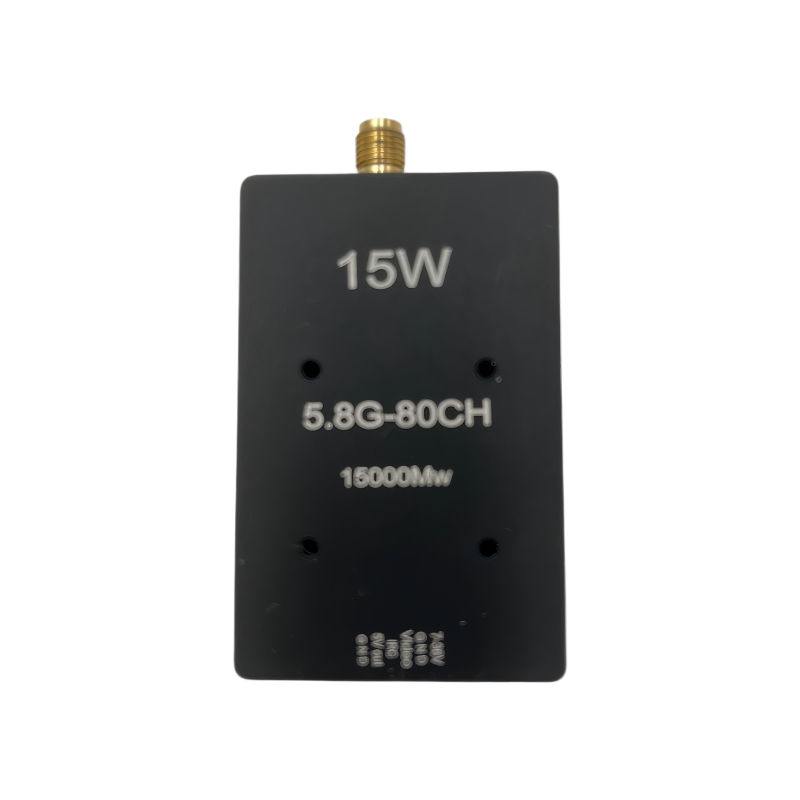

VTX · 16
4.9–6GHz / 15W
SKU: VTX4G9-6G-15000
Frequency4990–5945MHz
Channels80CH
Max Power15000mW
Power Levels1/2/5/7.5/15W
CoolingAluminum + Fan
→
VTX · 17
7.2GHz / 3W
SKU: VTX7G2-3000
Frequency6110–7210MHz
Channels60CH
Max Power3000mW
Power Levels25mW / 1W / 3W
Weight25.85g
→

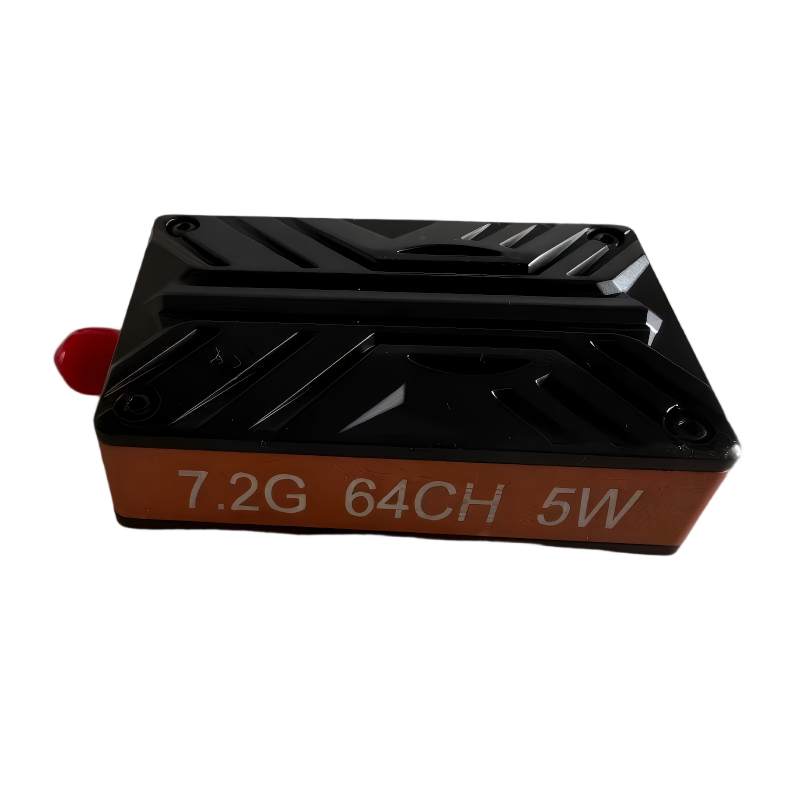

VTX · 18
7.2GHz / 5W
SKU: VTX7G2-5000
Frequency6110–7210MHz
Channels60CH
Max Power5000mW
Power Levels25mW / 2.5W / 5W
Weight56g
→

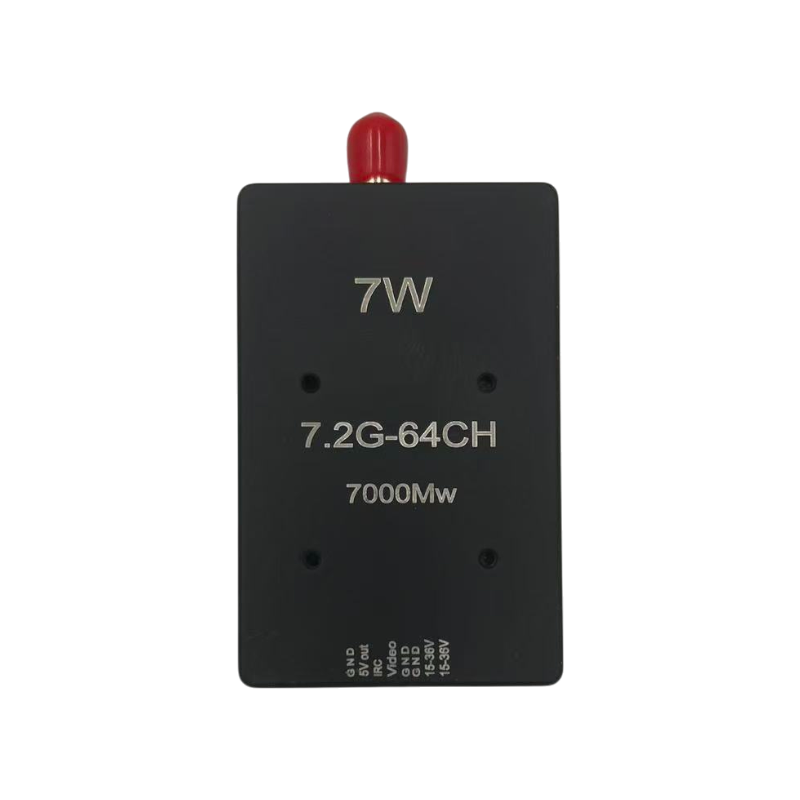

VTX · 19
7.2GHz / 7W
SKU: VTX7G2-7000
Frequency6110–7210MHz
Channels64CH
Max Power7000mW
Power Levels25mW / 2.5W / 5W / 7W
Weight48.15g
Factory Tested
Electrical, RF and image quality inspection on every production batch
Production QC
Electrical, RF and image testing on every batch — <0.5% defect rate
Engineering Support
Hardware & firmware engineers available for integration and field troubleshooting
