VTX Transmitters · VTX Band
1.7GHz / 5W VTX
SKU: VTX1G7-5000

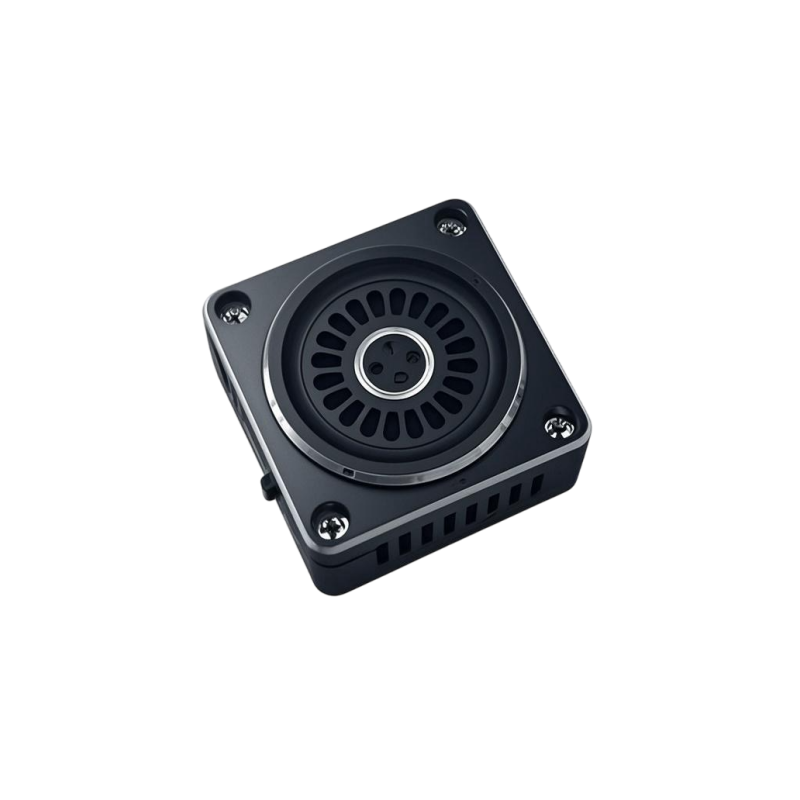

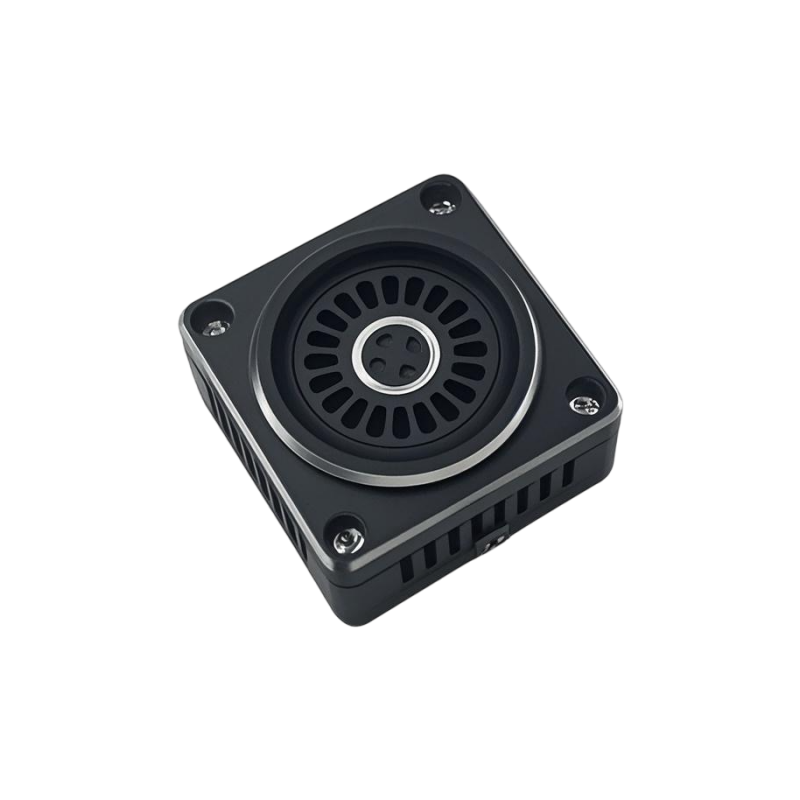

1.7GHz high-power FPV transmitter with active cooling — aluminum alloy shell with heat sink and fan. Two-level power up to 5W via MCX connector with IRC-Tramp Smart Audio.
Frequency
1680–1960MHz
Channels
9CH
Max Power
5W
Power Levels
25mW / 5000mW
Antenna
MCX
Weight
38g
In StockMOQ 20 UnitsOEM AvailableHigh Power
24h ReplyQuote fast
Fast Sample3–5 days
Factory DirectNo markup
OEM ReadyMOQ 20
Specifications
Full Technical Parameters
Frequency Range1680–1960MHz
Channels9CH
Power Levels25mW / 5000mW
Input Voltage7–36V DC (2–8S)
Antenna ConnectorMCX
Smart AudioIRC-Tramp
Shell MaterialAluminum + Fan
Hole Spacing30.5 × 30.5mm / ø3.0mm
Dimensions38 × 38 × 20.7mm
Weight38g
MOQ20 units
FAQ
Common Questions
What is the minimum order quantity?
Can I get samples before placing a bulk order?
Do you support OEM / custom branding?
How long does shipping take?
What payment methods do you accept?
What warranty do your products come with?
Ready to order the 1.7GHz / 5W VTX?
Contact our sales team for factory-direct pricing, sample availability, and OEM customization. We respond within 24 hours.
