VTX Transmitters · VTX Band
1.7GHz / 4W VTX
SKU: VTX1G7-4000

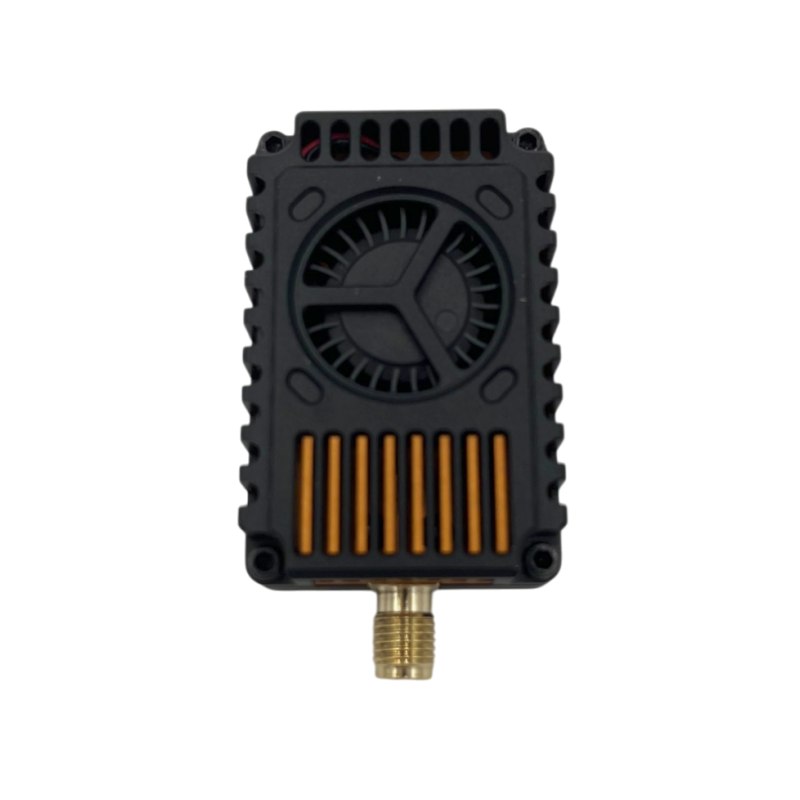

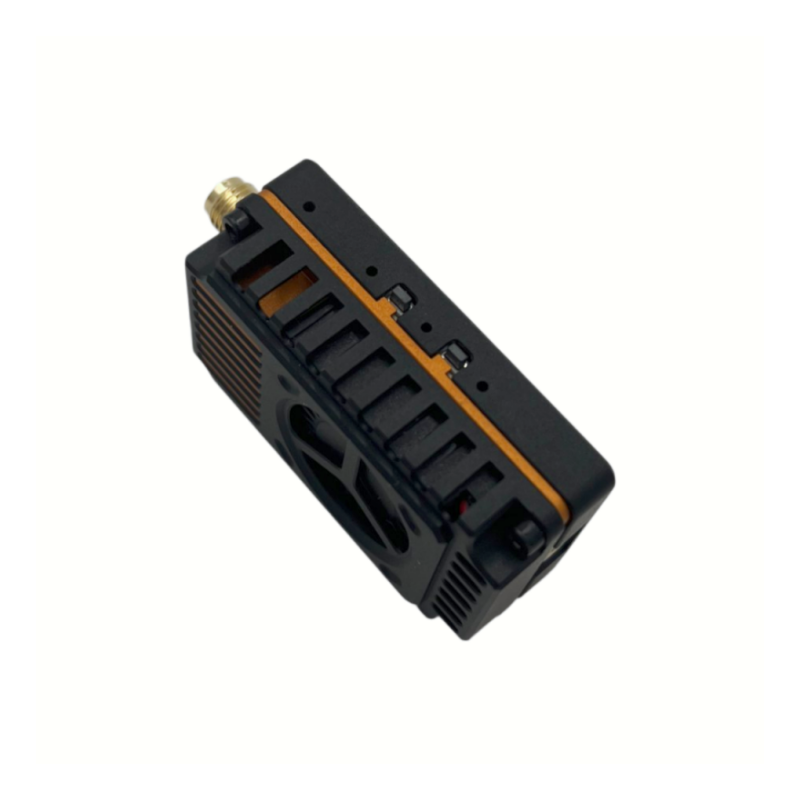

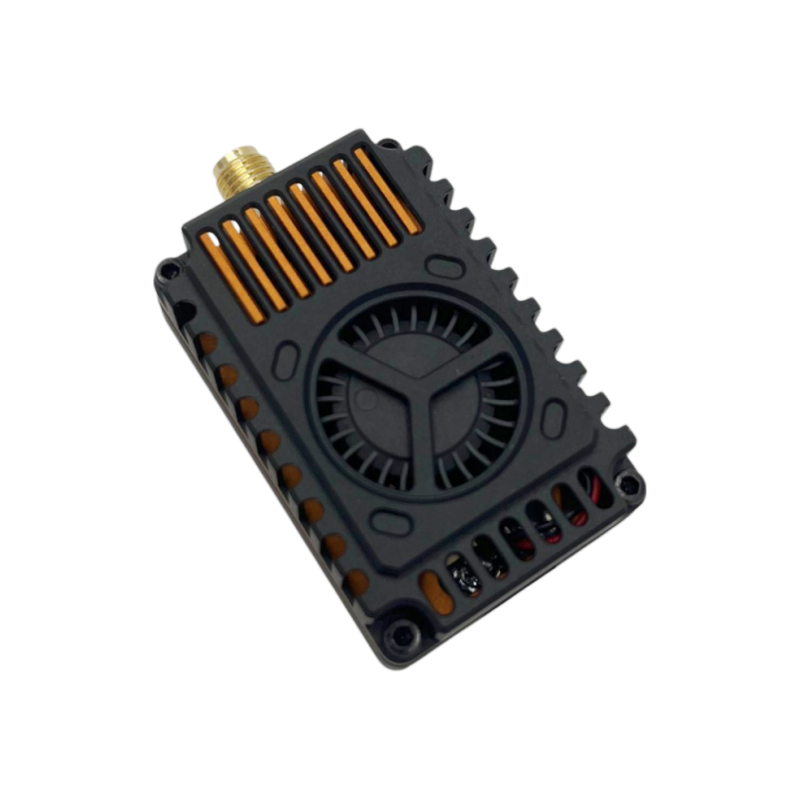

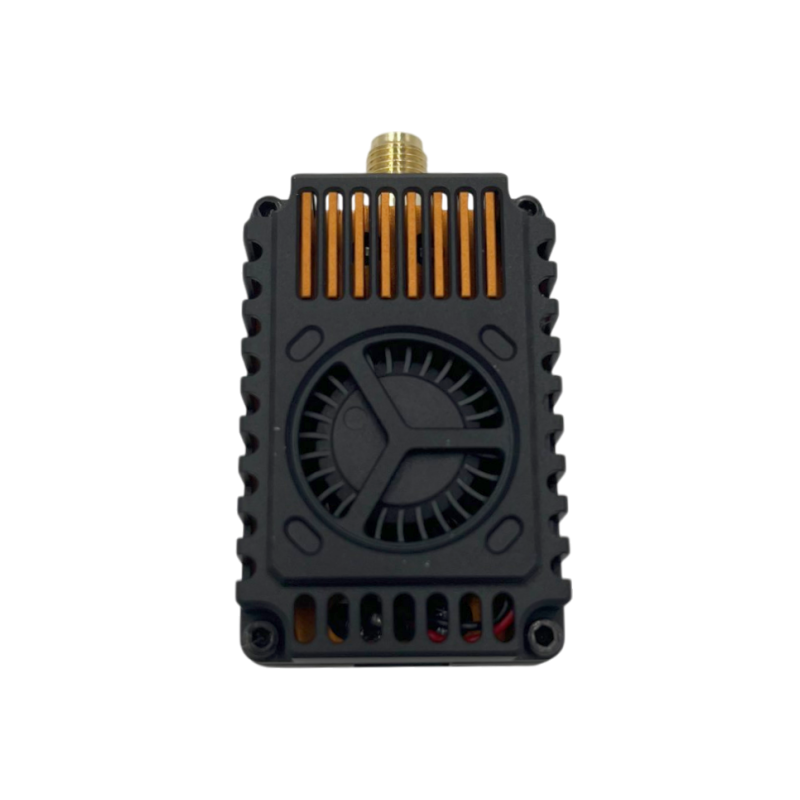

1.7GHz band FPV transmitter with 16 channels across 1680–1960MHz. Digital phase-lock loop eliminates frequency drift. Three power levels up to 4W with removable SMA antenna — suitable for PAL and NTSC cameras.
Frequency
1680–1960MHz
Channels
8CH / 16 optional
Max Power
4W
Power Levels
25mW/2000mW/4000mW
Input Voltage
7–36V
Output Voltage
12V 1.04A
In StockMOQ 20 UnitsOEM AvailableNew
24h ReplyQuote fast
Fast Sample3–5 days
Factory DirectNo markup
OEM ReadyMOQ 20
Specifications
Full Technical Parameters
Frequency Range1680–1960MHz
Channels8CH (16 optional)
Power Levels25mW / 2000mW / 4000mW
Input Voltage7–36V
Output Voltage12V 1.04A
Audio Sub-carrier6.5MHz
Antenna ConnectorSMA (removable)
Phase LockDigital PLL (no drift)
Camera CompatibilityPAL / NTSC
MOQ20 units
FAQ
Common Questions
What is the minimum order quantity?
Can I get samples before placing a bulk order?
Do you support OEM / custom branding?
How long does shipping take?
What payment methods do you accept?
What warranty do your products come with?
Ready to order the 1.7GHz / 4W VTX?
Contact our sales team for factory-direct pricing, sample availability, and OEM customization. We respond within 24 hours.
