VTX Transmitters · VTX Band
1.2GHz / 800mW VTX
SKU: VTX1G2-800
Long-range 1.2GHz FPV video transmitter with 9 channels across 1060–1380MHz. Four selectable power levels up to 800mW — ideal for extended-range UAV operations where penetration and distance matter.
Frequency
1060–1380MHz
Channels
9CH
Max Power
800mW
Input Voltage
7–36V (2–8S)
Dimensions
45.5×35.6×11.5mm
Weight
21g
In StockMOQ 20 UnitsOEM AvailableLong Range
24h ReplyQuote fast
Fast Sample3–5 days
Factory DirectNo markup
OEM ReadyMOQ 20
Specifications
Full Technical Parameters
Frequency Range1060 – 1380MHz
Channels9CH
Power LevelsPIT / 25 / 200 / 800mW
Input Voltage7–36V DC (2–8S)
Output Voltage5V 1A
Current @ Pit Mode80mA
Current @ 25mW170mA
Current @ 200mW210mA
Current @ 800mW380mA
Antenna ConnectorSMA

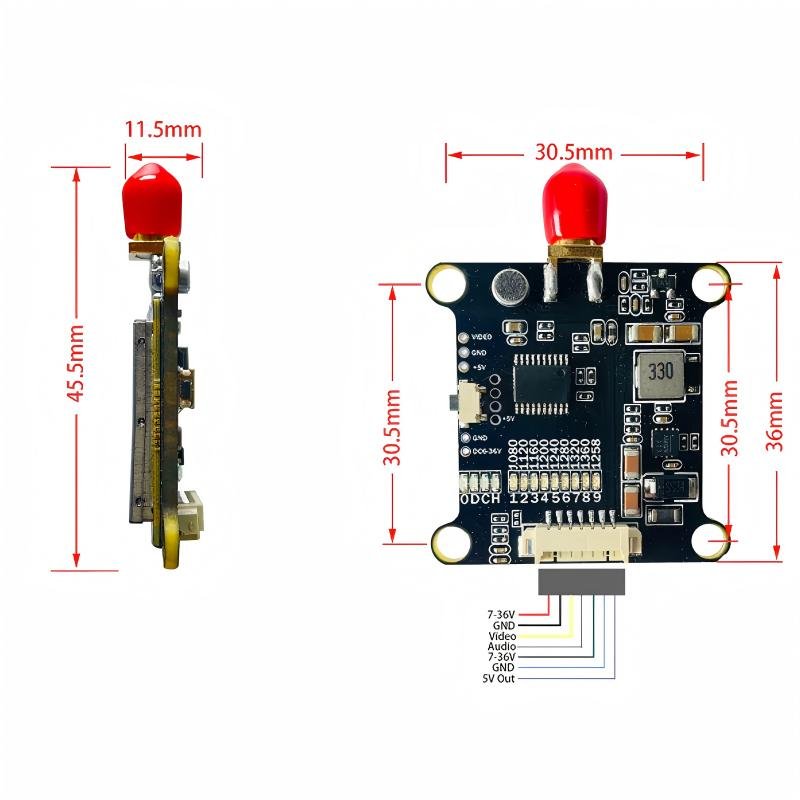

Dimensions45.5 × 35.6 × 11.5mm
Mounting Holes30.5 × 30.5mm
Weight21g
MOQ20 units
FAQ
Common Questions
What is the minimum order quantity?
Can I get samples before placing a bulk order?
Do you support OEM / custom branding?
How long does shipping take?
What payment methods do you accept?
What warranty do your products come with?
Ready to order the 1.2GHz / 800mW VTX?
Contact our sales team for factory-direct pricing, sample availability, and OEM customization. We respond within 24 hours.
