VTX Transmitters · VTX Band

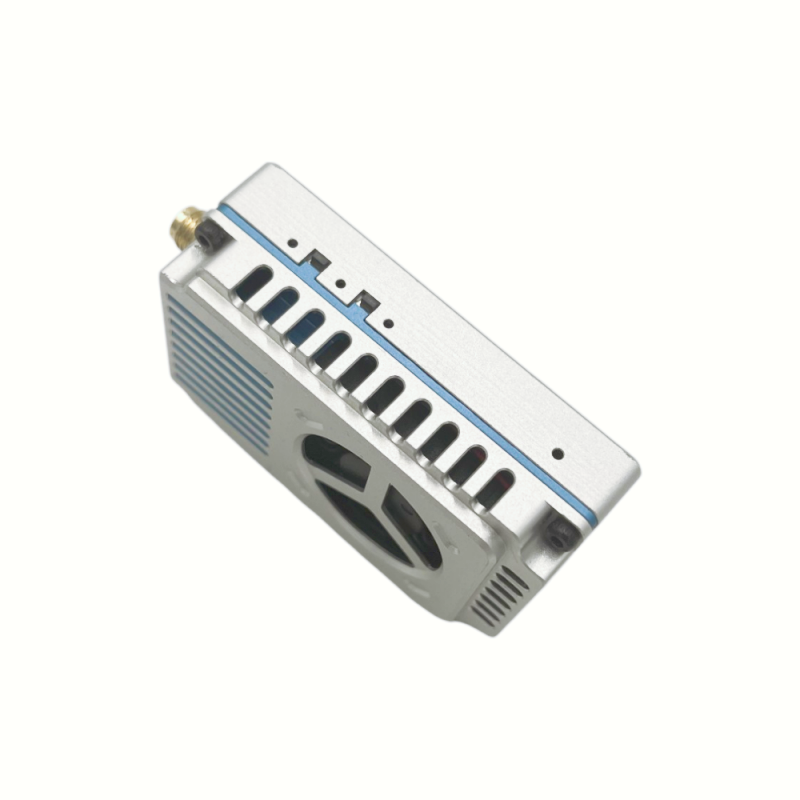

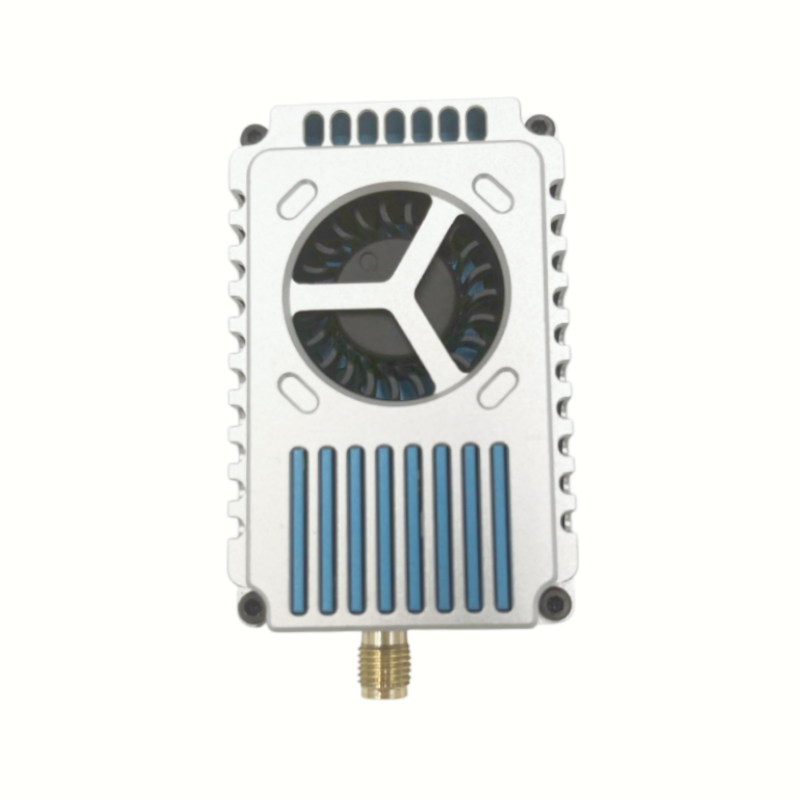

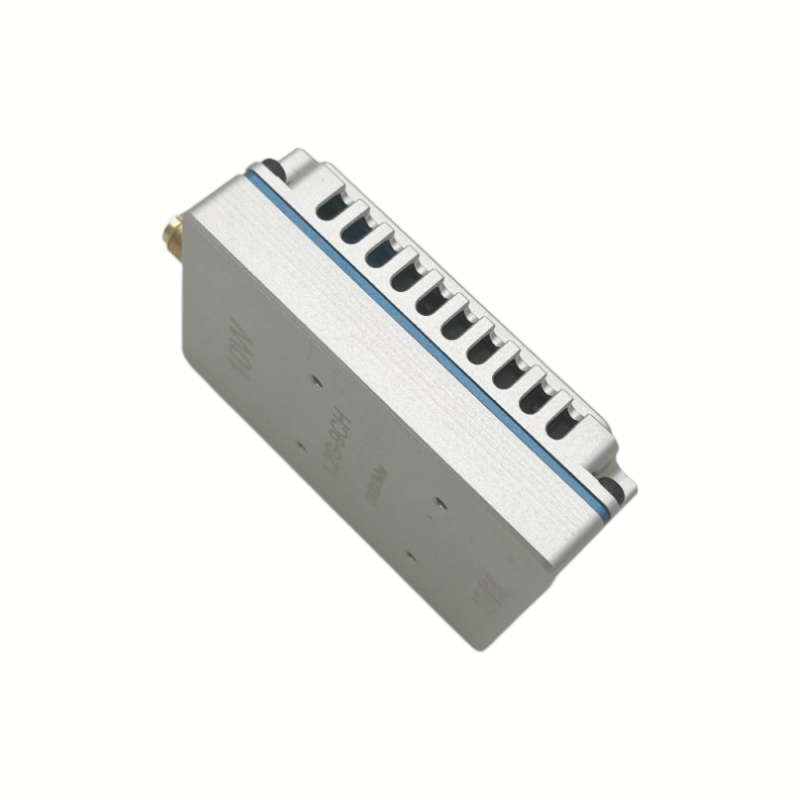

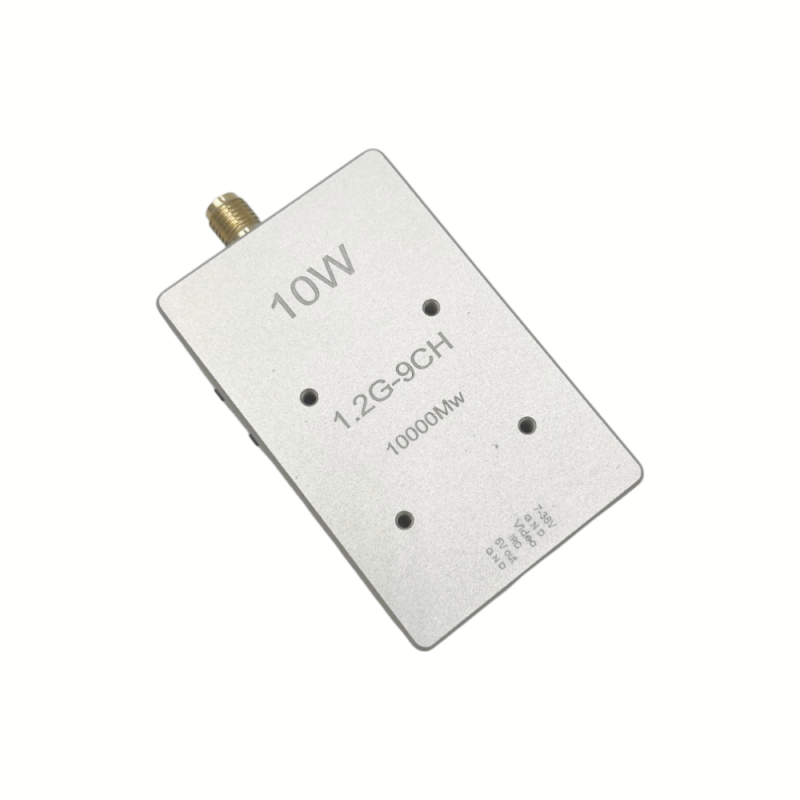

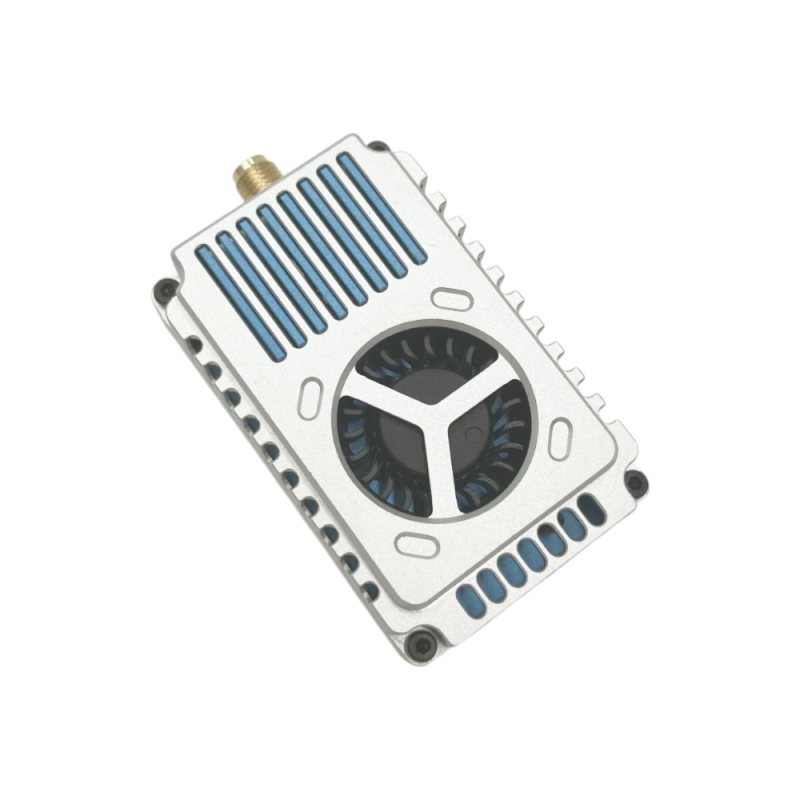

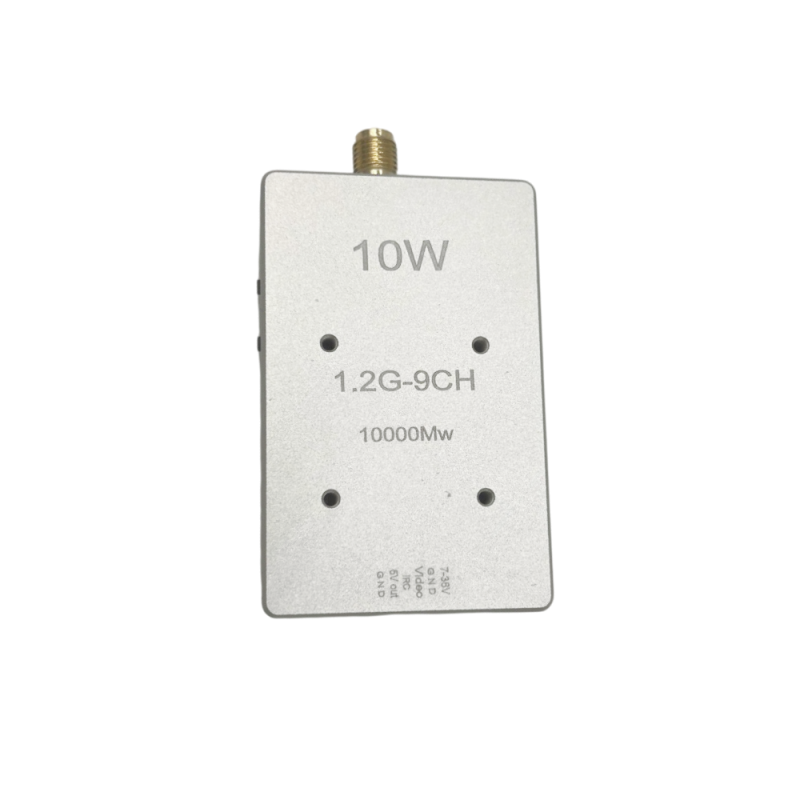

1.2GHz / 10W VTX
SKU: VTX1G2-10000
Top-tier 1.2GHz transmitter pushing up to 10W output power. Aluminum alloy shell with active cooling, MMCX connector, and IRC-Tramp Smart Audio — for professional UAV operations requiring maximum range.
Frequency
1080–1360MHz
Channels
9CH
Max Power
10W
Power Levels
25mW–10000mW
Antenna
MMCX
Dimensions
58×37×20.7mm
In StockMOQ 20 UnitsOEM Available10W Max
24h ReplyQuote fast
Fast Sample3–5 days
Factory DirectNo markup
OEM ReadyMOQ 20
Specifications
Full Technical Parameters
Frequency Range1080–1360MHz
Channels9CH
Power Levels25mW – 10000mW
Input Voltage7–36V DC (2–8S)
Output Voltage5V 1A
Antenna ConnectorMMCX
Smart AudioIRC-Tramp
Shell MaterialAluminum + Fan
Dimensions58 × 37 × 20.7mm
Hole Spacing20 × 20mm / ø2.0mm
MOQ20 units
FAQ
Common Questions
What is the minimum order quantity?
Can I get samples before placing a bulk order?
Do you support OEM / custom branding?
How long does shipping take?
What payment methods do you accept?
What warranty do your products come with?
Ready to order the 1.2GHz / 10W VTX?
Contact our sales team for factory-direct pricing, sample availability, and OEM customization. We respond within 24 hours.
