VTX Transmitters
3.3GHz / 10W VTX
SKU: VTX3G3-10000

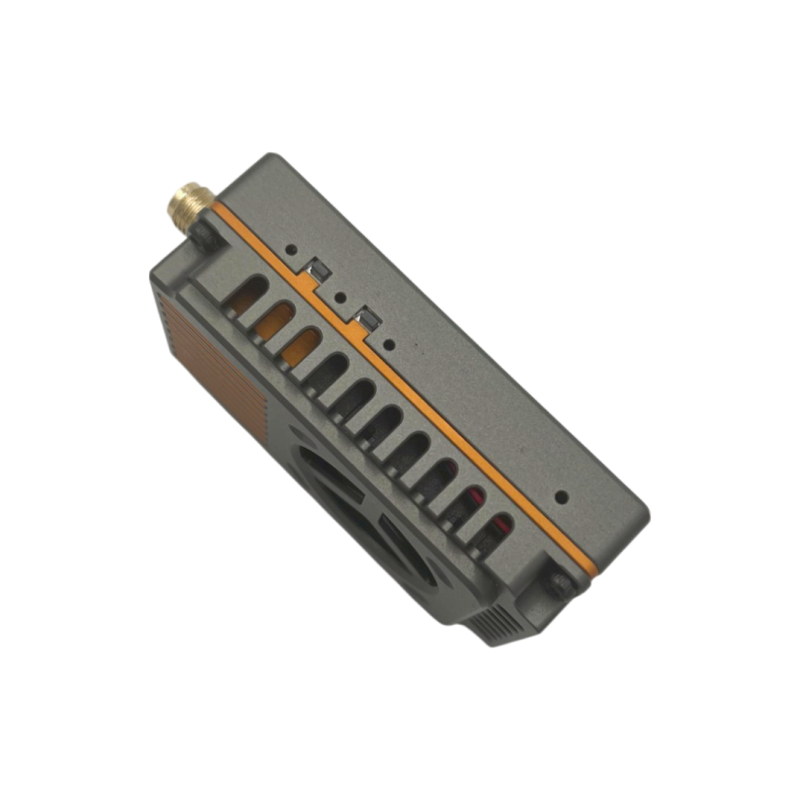

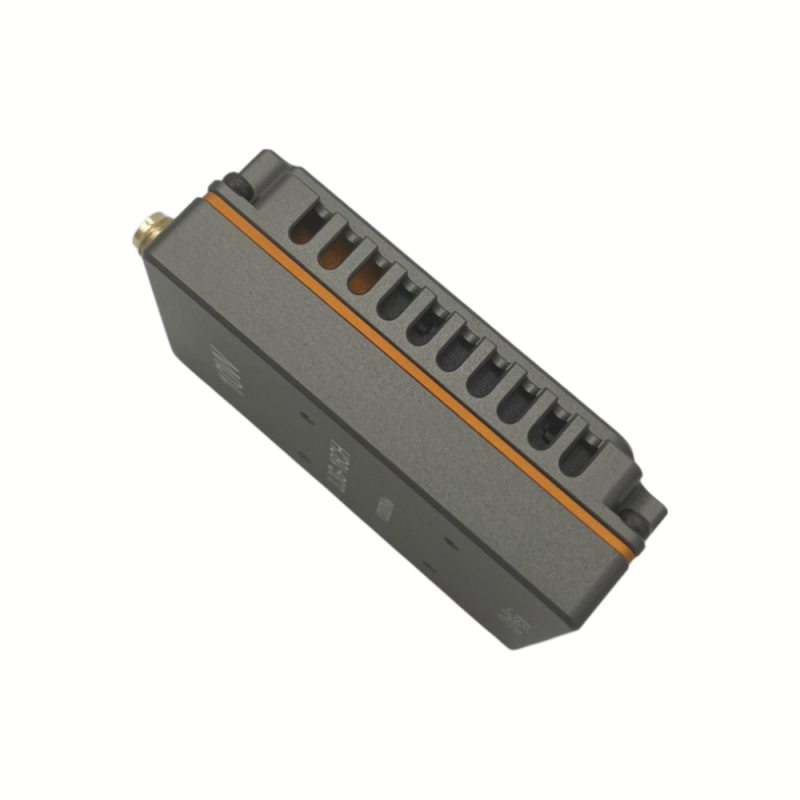

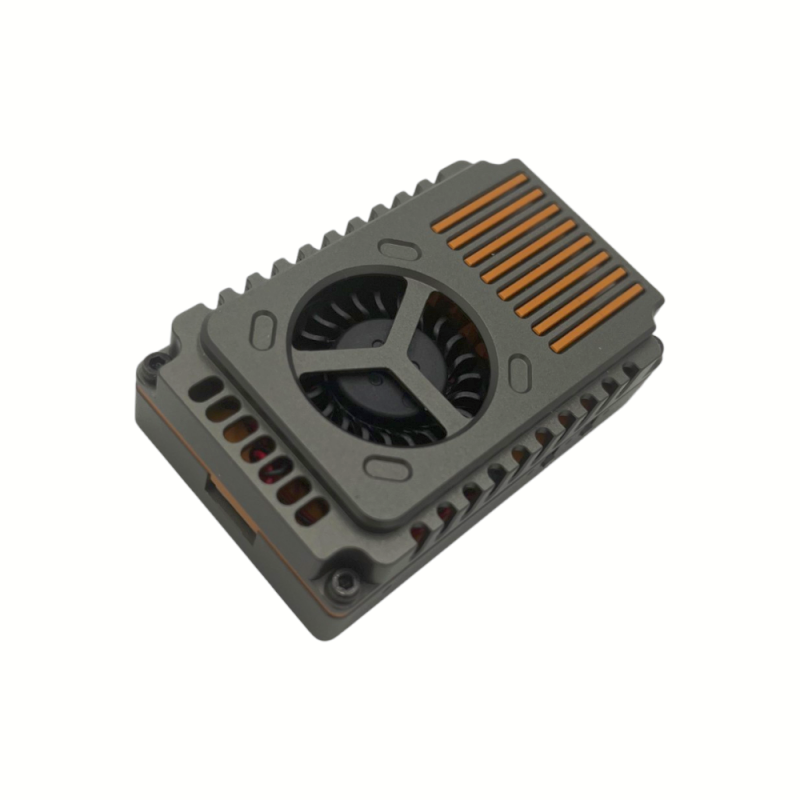

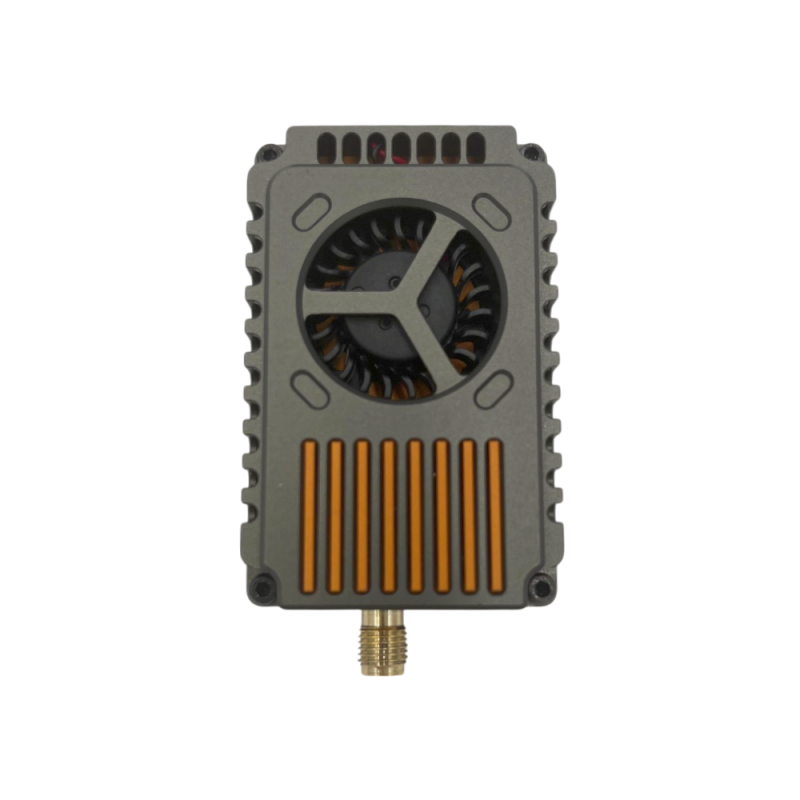

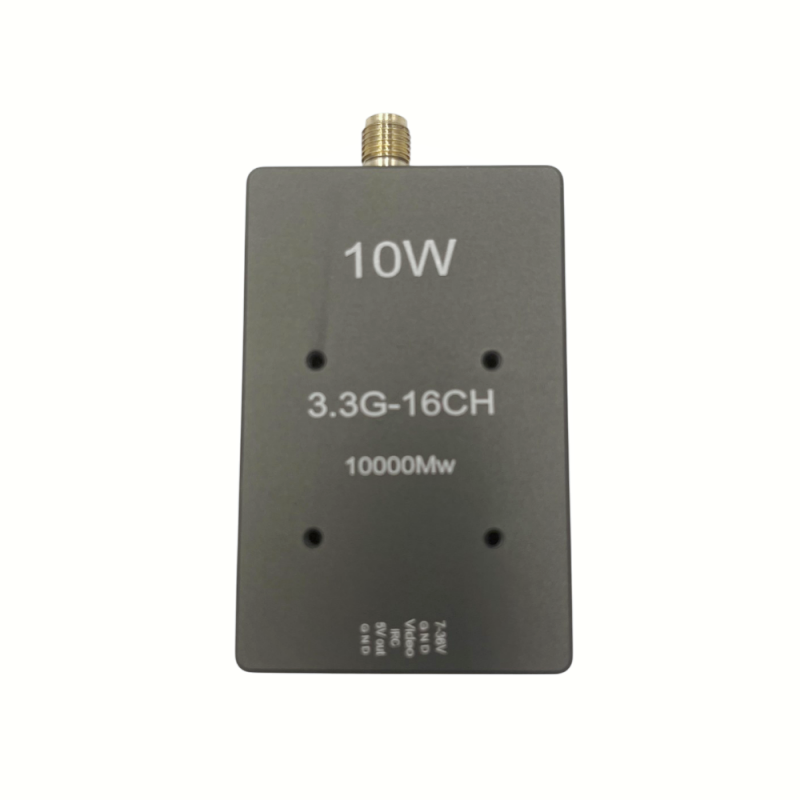

Flagship 3.3GHz transmitter with five adjustable power levels up to 10W. Aluminum alloy shell with active cooling and SMA connector — designed for professional long-range UAV surveillance missions.
Frequency
3170–3470MHz
Channels
16CH
Max Power
10W
Power Levels
1W/2W/5W/7.5W/10W
Antenna
SMA
Dimensions
64×37.2×17.2mm
In StockMOQ 20 UnitsOEM Available10W Max
24h ReplyQuote fast
Fast Sample3–5 days
Factory DirectNo markup
OEM ReadyMOQ 20
Specifications
Full Technical Parameters
Frequency Range3170–3470MHz
Channels16CH
Power Levels1W / 2W / 5W / 7.5W / 10W
Input Voltage13–36V DC (2–8S)
Antenna ConnectorSMA
Smart AudioIRC-Tramp
Shell MaterialAluminum + Fan
Hole Spacing20 × 20mm / ø2.0mm
Dimensions64.13 × 37.2 × 17.2mm
Weight56g
MOQ20 units
FAQ
Common Questions
What is the minimum order quantity?
Can I get samples before placing a bulk order?
Do you support OEM / custom branding?
How long does shipping take?
What payment methods do you accept?
What warranty do your products come with?
Ready to order the 3.3GHz / 10W VTX?
Contact our sales team for factory-direct pricing, sample availability, and OEM customization. We respond within 24 hours.
