VRX Receivers
FPV Video
Receivers
1.2GHz to 7.2GHz FPV receivers with -95dBm sensitivity. Single-band and multi-band box receivers for professional ground station integration.
VRX Receivers
6 Models
→

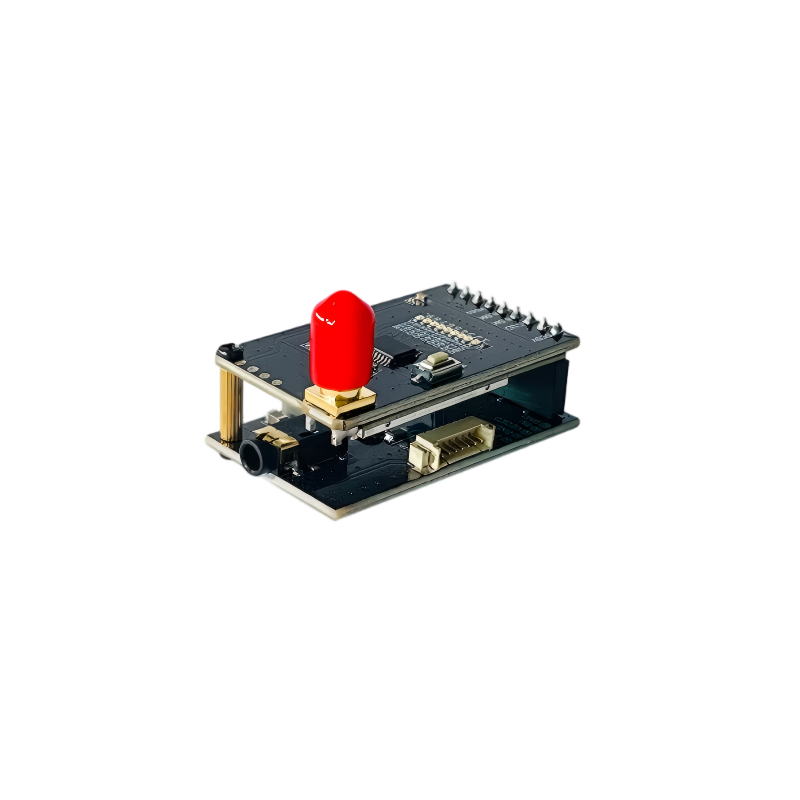

VRX · 01
1.2G VRX
SKU: VRX-1G2
Frequency1050–1380MHz
Channels9CH
RX Sensitivity-95dBm
Input Voltage7–36V
Dimensions44×27×27mm
Weight20g
→

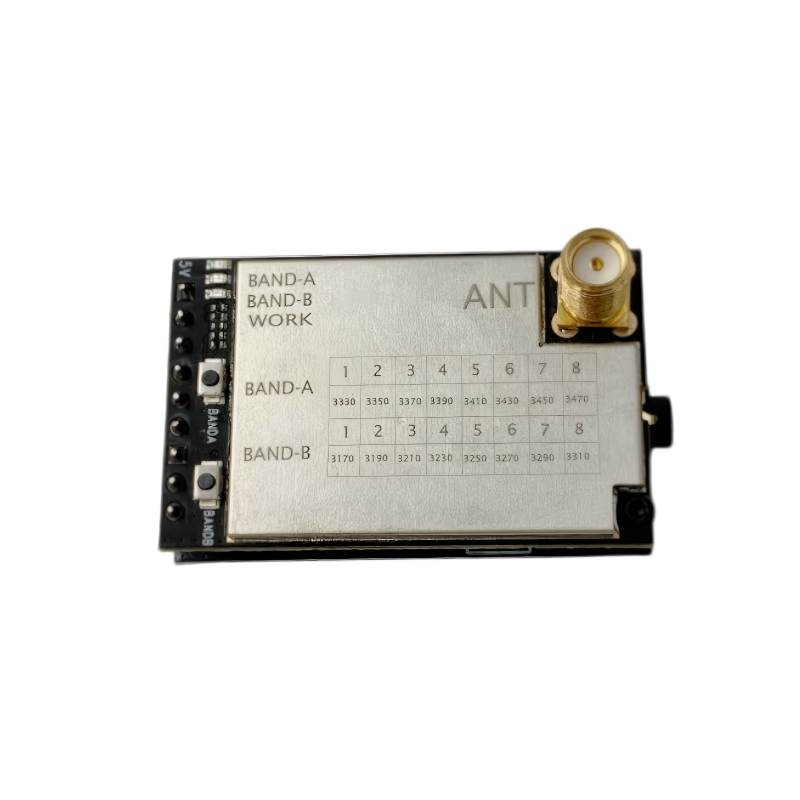

VRX · 02
3.3G VRX
SKU: VRX-3G3
Frequency3170–3470MHz
Channels16CH
RX Sensitivity-95dBm
Input Voltage7–36V
Output5V 1A onboard
ConnectorSMA
→
VRX · 03
3.3G VRX SE
SKU: VRX-3G3SE
Frequency3170–3470MHz
Channels16CH
RX Sensitivity-95dBm
Input Voltage7–36V
Output5V 1A onboard
ConnectorSMA
→
VRX · 04
4.9–5.9G VRX
SKU: VRX-4G9-5G9SE
Frequency4900–5900MHz
Channels16CH
RX Sensitivity-95dBm
Input Voltage7–36V
Output5V 1A onboard
ConnectorSMA
→

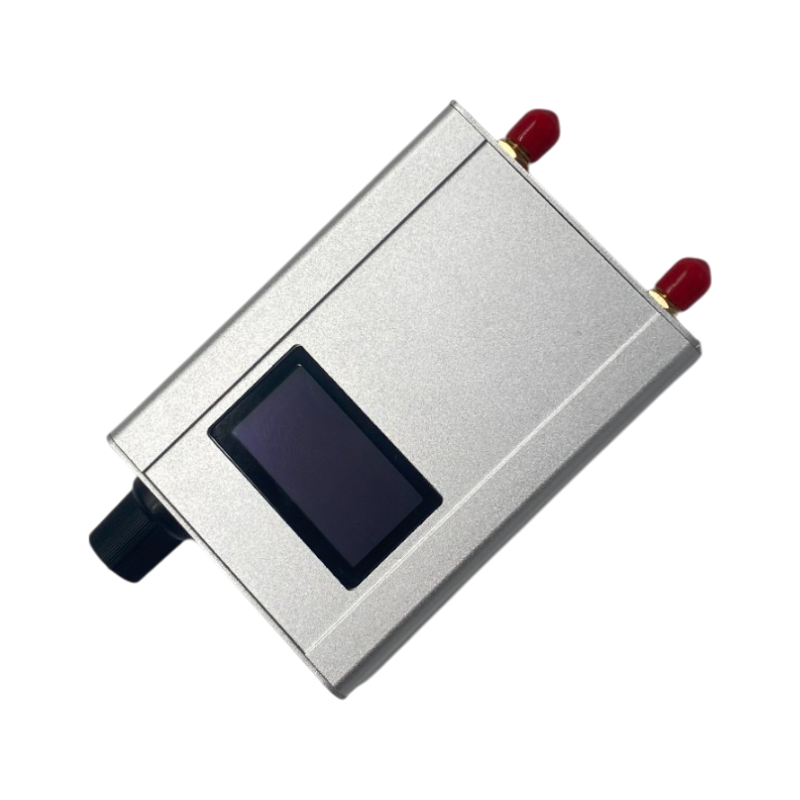

VRX · 05
VRX Box Multi-band
SKU: VRX-BOX-5G
Bands1.2/1.7/2.7/3.3/5.8G
Form FactorBox receiver
RX Sensitivity-95dBm
DemodulationFM/PLL
Video Output75Ω
ConnectorSMA
→

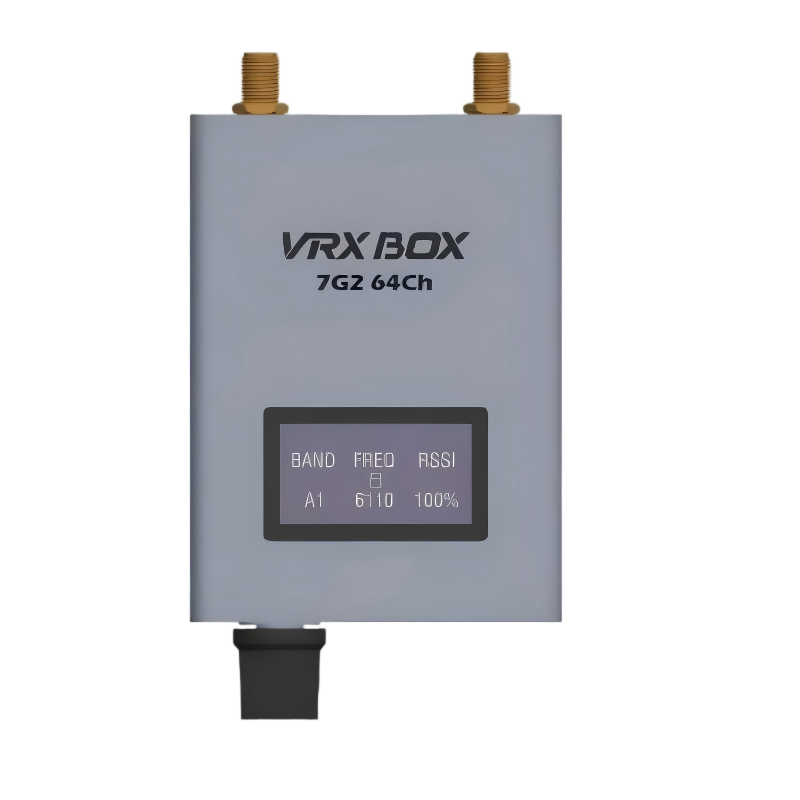

VRX · 06
VRX Box 7.2G
SKU: VRX-BOX-7G
Band7.2GHz
Form FactorBox receiver
RX Sensitivity-95dBm
DemodulationFM/PLL
Video Output75Ω
ConnectorSMA
Factory Tested
Electrical, RF and image quality inspection on every production batch
Production QC
Electrical, RF and image testing on every batch — <0.5% defect rate
Engineering Support
Hardware & firmware engineers available for integration and field troubleshooting
