VTX Transmitters · VTX Band
1.2GHz / 4W VTX
SKU: VTX1G2-4000

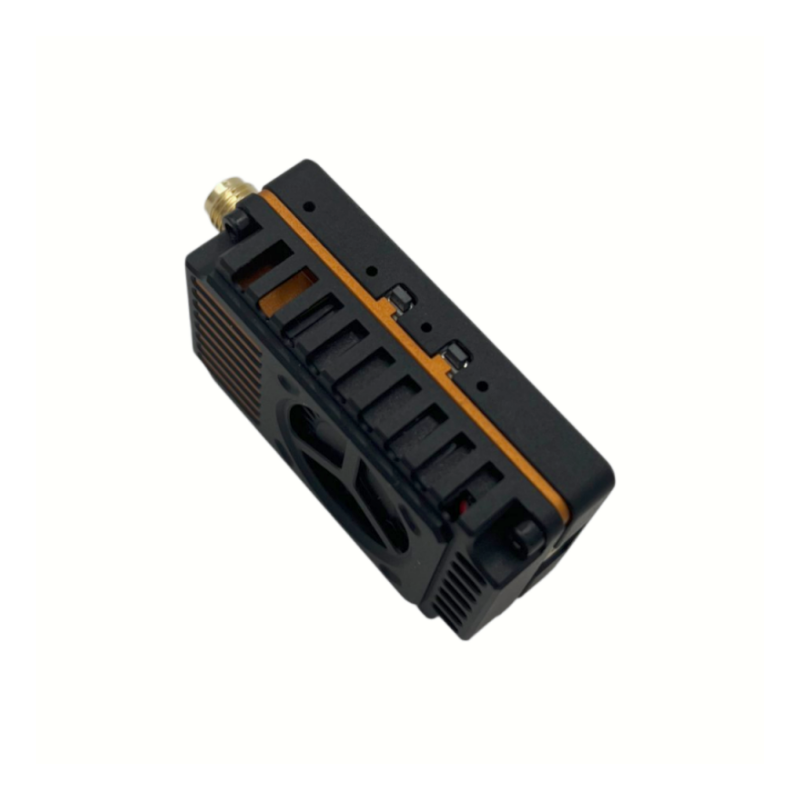

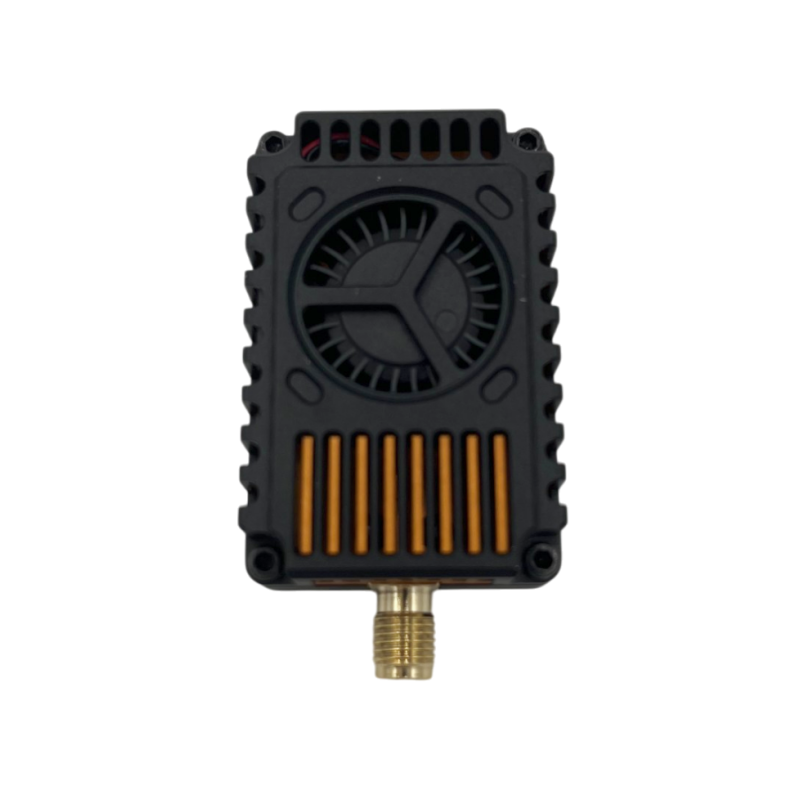

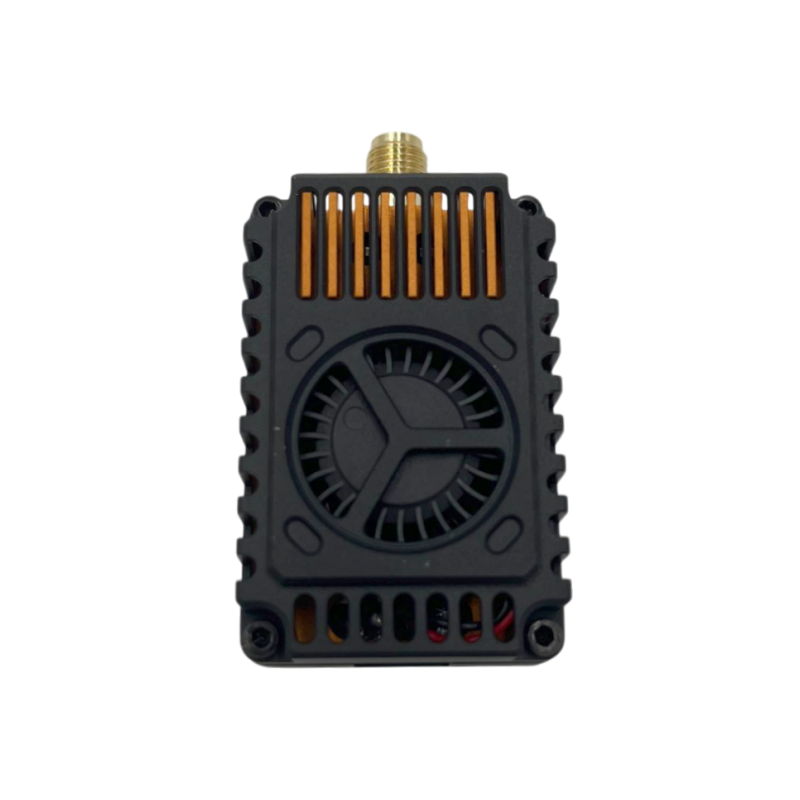

High-power 1.2GHz aluminum-shell transmitter with MMCX connector and IRC-Tramp Smart Audio. Three power levels up to 4W — built for extended-range UAV operations demanding maximum video penetration.
Frequency
1080–1360MHz
Channels
9CH
Max Power
4W
Power Levels
25mW/2000mW/4000mW
Antenna
MMCX
Weight
16g
In StockMOQ 20 UnitsOEM AvailableHigh Power
24h ReplyQuote fast
Fast Sample3–5 days
Factory DirectNo markup
OEM ReadyMOQ 20
Specifications
Full Technical Parameters
Frequency Range1080–1360MHz
Channels9CH
Power Levels25mW / 2000mW / 4000mW
Input Voltage7–36V DC (2–8S)
Output Voltage5V 1A
Antenna ConnectorMMCX
Smart AudioIRC-Tramp
Shell MaterialAluminum
Dimensions44 × 28.5 × 16mm
Mounting Holes30.5 × 30.5mm
Weight16g
MOQ20 units
FAQ
Common Questions
What is the minimum order quantity?
Can I get samples before placing a bulk order?
Do you support OEM / custom branding?
How long does shipping take?
What payment methods do you accept?
What warranty do your products come with?
Ready to order the 1.2GHz / 4W VTX?
Contact our sales team for factory-direct pricing, sample availability, and OEM customization. We respond within 24 hours.
