Thermal 256
SKU: OMT-DM256

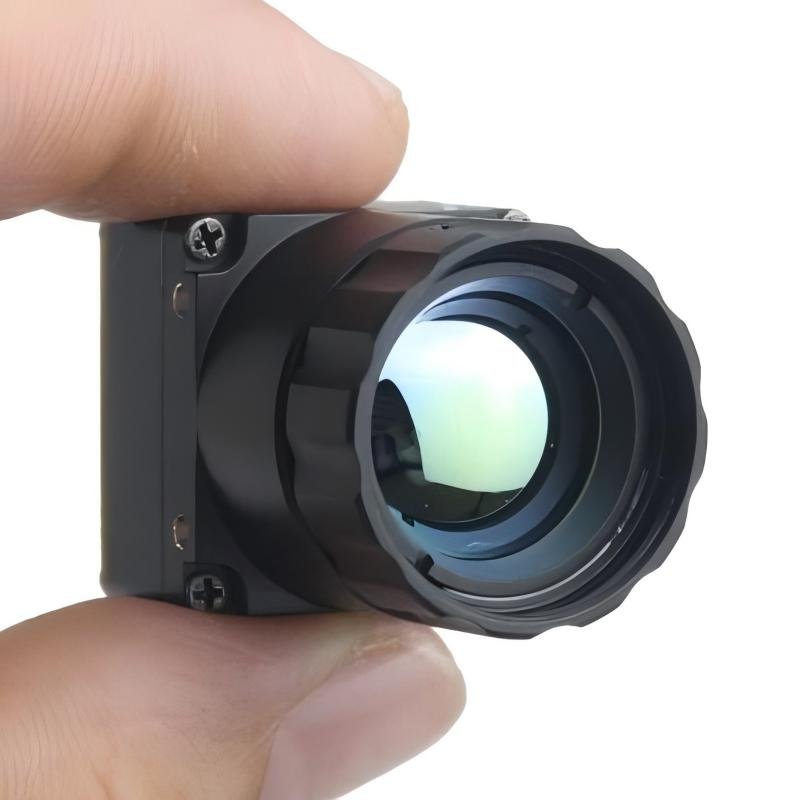

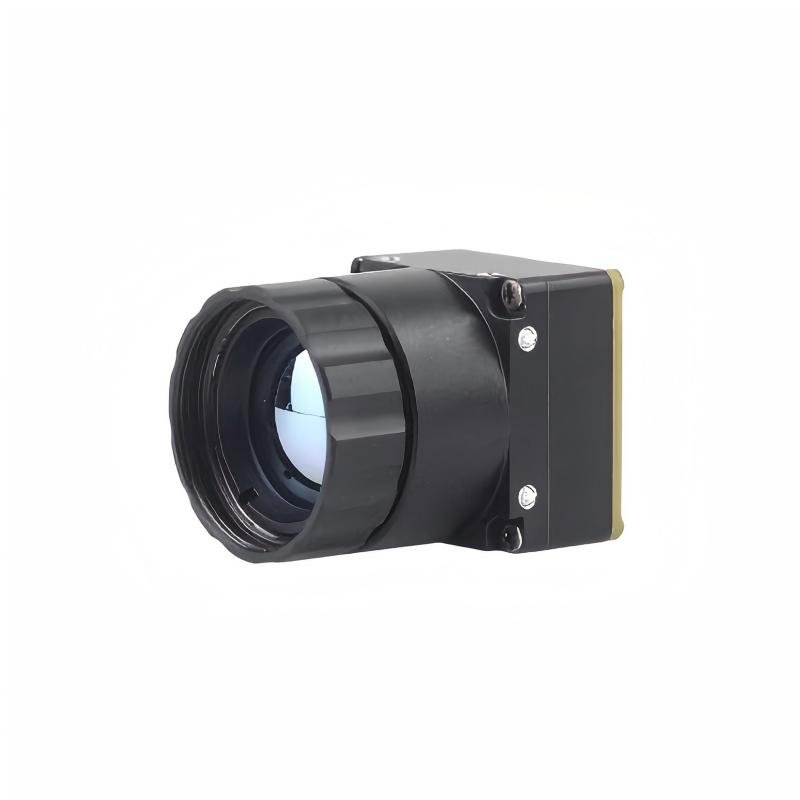

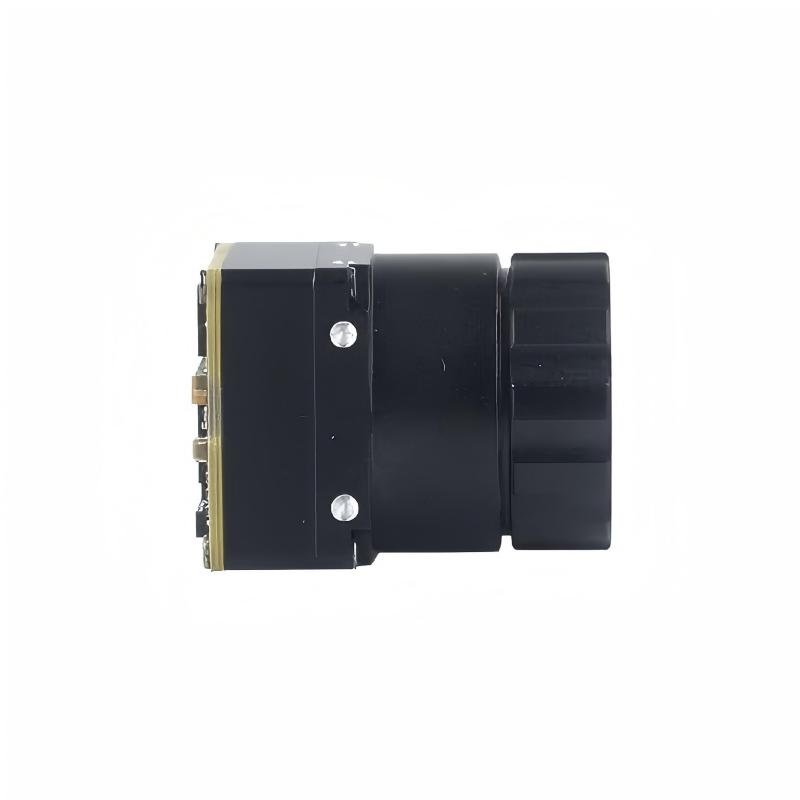

Compact UAV thermal imaging module with 256×192 uncooled VOx detector. Under 17.5g with a 21×21mm footprint — engineered for weight-sensitive drone platforms requiring reliable thermal detection day and night.
Resolution
256 × 192
Frame Rate
50 Hz
NETD
< 40mK
Weight
< 17.5g
Voltage
4.5 – 18V
Dimensions
21 × 21mm
In StockMOQ 20 UnitsOEM AvailableNo-Shutter Algorithm
24h ReplyQuote fast
Fast Sample3–5 days
Factory DirectNo markup
OEM ReadyMOQ 20
Specifications
Full Technical Parameters
IR Resolution256 × 192
Detector TypeVOx Uncooled FPA
Spectral Band8 – 14 μm
Pixel Pitch12 μm
Frame Rate50 Hz
Lens Options4mm / 9mm
NETD< 40mK @ 25°C
Dimensions21 × 21 × 29.5mm
Weight< 17.5g
Input Voltage4.5 – 18V
Video OutputCVBS Analog
Working Temperature-40°C ~ +80°C
Humidity5% – 95%, Non-condensing
Shock80g @ 4ms, 3-Axis 6-Direction
Applications
Built for real-world UAV operations
Search & Rescue
Detect human body heat in darkness, smoke, or dense foliage. Ideal for lightweight rescue drone platforms where every gram matters.
Infrastructure Inspection
Identify heat anomalies in electrical panels, pipelines, and structures. Enables preventive maintenance from the air.
Security & Surveillance
Monitor perimeters and restricted zones day or night. No active lighting required — pure thermal detection.
FAQ
Common Questions
What is the minimum order quantity?
Can I get samples before placing a bulk order?
Do you support OEM / custom branding?
How long does shipping take?
What payment methods do you accept?
What warranty do your products come with?
Ready to order the Thermal 256?
Contact our sales team for factory-direct pricing, sample availability, and OEM customization. We respond within 24 hours.
